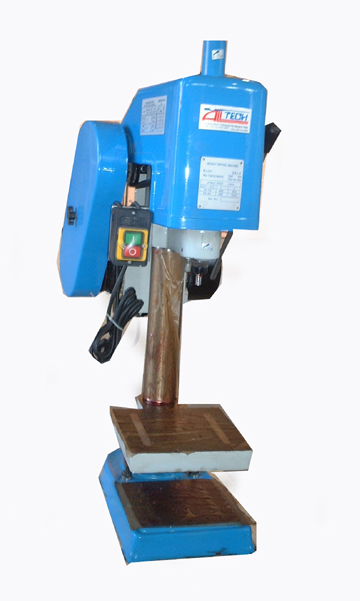

SWJ-6





Model. SWJ-6
Max.tapping capacity (mm) Cast iron
M6
Steel
M5
Distance from spindle axis to column surface
127 mm
Short Mose spindle cone
B10
Spindle's travel for elevation
40 mm
Working table's travel for elevation
/
Distance from spindle nose to working table
245 mm
Size of working table
196 x 196 mm
Distance from spindle nose to base's surface
375 mm
Size of base
385 x 125 mm
Diameter of column
60 mm
Spindle speed (r/min) Tap into
480.850
Tap out
580.1050
Motor
250 W
Packing dimension (L x W x H)
61 x 44 x 91 cm
Net weight
43 Kg
